Traction Lifts
Flexible products with standard lift shaft sizes that can be easily adjusted to suit non-standard applications. State of the art Gearless drive systems.
Traction Lifts
High performance Gearless (motor room less) systems from 3 person to 16 person. Energy efficient, low noise, supreme performance. Exclusive 90 degree door arrangements.
The Flight Range
The Supaflight is not only a new range of lifts but also a new philosophy in lifts - a philosophy of simplicity. The Flight System is here to make it easy for you to select a lift with its many options, styles, sizes and configurations.
At-a-glance comparisons or comprehensive data let you choose with ease the most suitable size, door types, installation mountings and finishes.
Supaflight is a vanguard of the Flight Range. Evolved from the established Custom Maxilifts, this pioneering range of passenger lifts offers you a choice in comfort levels and durability for any low to medium rise building.
Supaflight (gearless traction)
Standard features
Swallow Lifts Supaflight is a supreme performance intensive use range of passenger elevator designed to provide the highest quality service and performance with the lowest energy consumption.
- Gearless motor room less traction with Variable frequency control Drive System provides very smooth and quiet operation
- Speed range from 0.4 m/s to 1.6 m/s
- Requires a 1100mm deep pit and headroom of 3600mm
- Battery powered emergency lowering system
- Various cab sizes to suit most application from 3 person to 8 person capacity.
- Exclusive adjacent door entry system
- Complies fully with EN81/1 and Lift Regulations 1997
- Travel capability of up to 30m with up to 12 stops
- Low energy / power consumption
- 240volt single phase power supply option

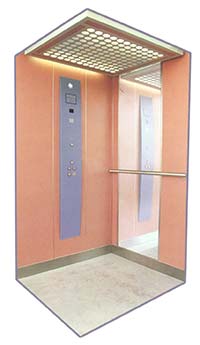

Standard Cab Features
- Stainless steel handrail
- Choice of eight (8) Melamine wall panels
- Satin stainless steel trim
- Control accessories to EN81/70, digital floor indicator in car, voice enunciator, tactile buttons, call recognition signals
- Fluorescent or Solid ceilings with spot lights
- Illuminated push button car and landing control stations
- Automatic timed lighting
- Mirror
Supaflight
Options
- Variety of cab type configurations available including straight through, 90 degree exit, and three side entry. Custom car
- sizes to suit existing lift shafts
- Additional selection of other car finishes, glass walls, mirrors, stainless steel, or budget cost skinplate
- Luxurious cab design featuring wood veneers, solid raised oak or recessed panels
- Observation Cab with laminated glass panels
- Firefighting and disabled evacuation control
Technical Aspects
- Power: 415volt 3 phase or 220 Volt, single phase
- Drive: 1:1 top driven gearless traction
- Speed: 0.4 m/s – 1.6m/s
- Rated Load: 225kg - 1250Kg
- Shaft sizes – please download technical data sheets
- Emergency Backup: Automatic Emergency Battery Powered Lowering with Automatic Battery Recharging
- Control Type: Collective control up to 4 car grouping
- Electronics: Solid State microprocessor based systems
- Maximum Travel: 30m
- Number of Stops: 12 Maximum
- Pit Depth Required: 1100mm
- Overhead Clearance: 3600mm
